HEICO 3D models on the CADENAS PARTcommunity platform

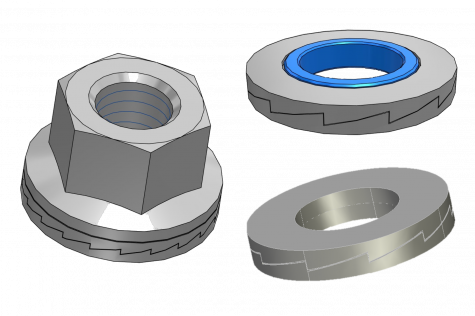

The HEICO Group provides its customers with 3D CAD data of HEICO-LOCK® and HEICO-TEC® products. The data files can be downloaded directly from HEICO's profile on the CADENAS PARTcommunity platform. The following product data are available after a free pre-registration:

HEICO-LOCK®
Wedge Lock Washers, Ring Lock Washers, Combi-Washers, HLK-Washers
Wedge Lock Nuts

HEICO-TEC®
Tension Nuts
strength class 8 or class 10
blank or zink flake coated
M20 to M120 (class 8) and M20 to M100 (class 10)

Please find our 3D CAD data here:
