nailing guns, nailhead stips and ply-grip

Decorative nail strips are used when an upholstery nail-like decoration of a piece of furniture is desired with quick and cost-effective processing at the same time.
To attach the strips, the upholstery nails required for this are supplied in the matching color and finish in a packaging unit when the order is placed.

Because of the use of tinned sheet metal, the surface is smooth and less prone to rust, even after long periods of storage.
We offer two fastening strips with different geometries for the materials used. So far we have been delivering the profile strips in rolls of 30 metres. On request we will also provide other bundles.

nailing guns, nailhead stips and ply-grip

product images	type
	Upholstery nails on plastic strips for power nailers	100 1/3 S (50/100 nails per strip) 100 1/3 S-2 (60 nails per stripe) Head-Ø: 9,5 mm
	Pneumatic power nailers	Model size ( L x H x W): 250 x 200 x 100 mm / 9.84“ x 7.87“ x 3.94“ Weight (without fasteners): 1,1 kg / 2.43 lbs Recommended operating pressure range: 4,5 ~ 6 bar / 65 ~ 90 PSIG Air consumption: 0,245 scfm with 25 nails per minute Noise dB(A): Sound pressure level LpA = 80.52 dB(A) Sound power level LwA = 93,52 dB(A) List of Fasteners: Head Ø 8,5 ~ 10,5 mm / 0,33“ ~ 0,42“ Head height 3,3 ~ 4,0 mm / 0,13“ ~ 0,16“ Shank Ø 1,4 mm / 0,055“ Magazine 100 pcs More models upon request

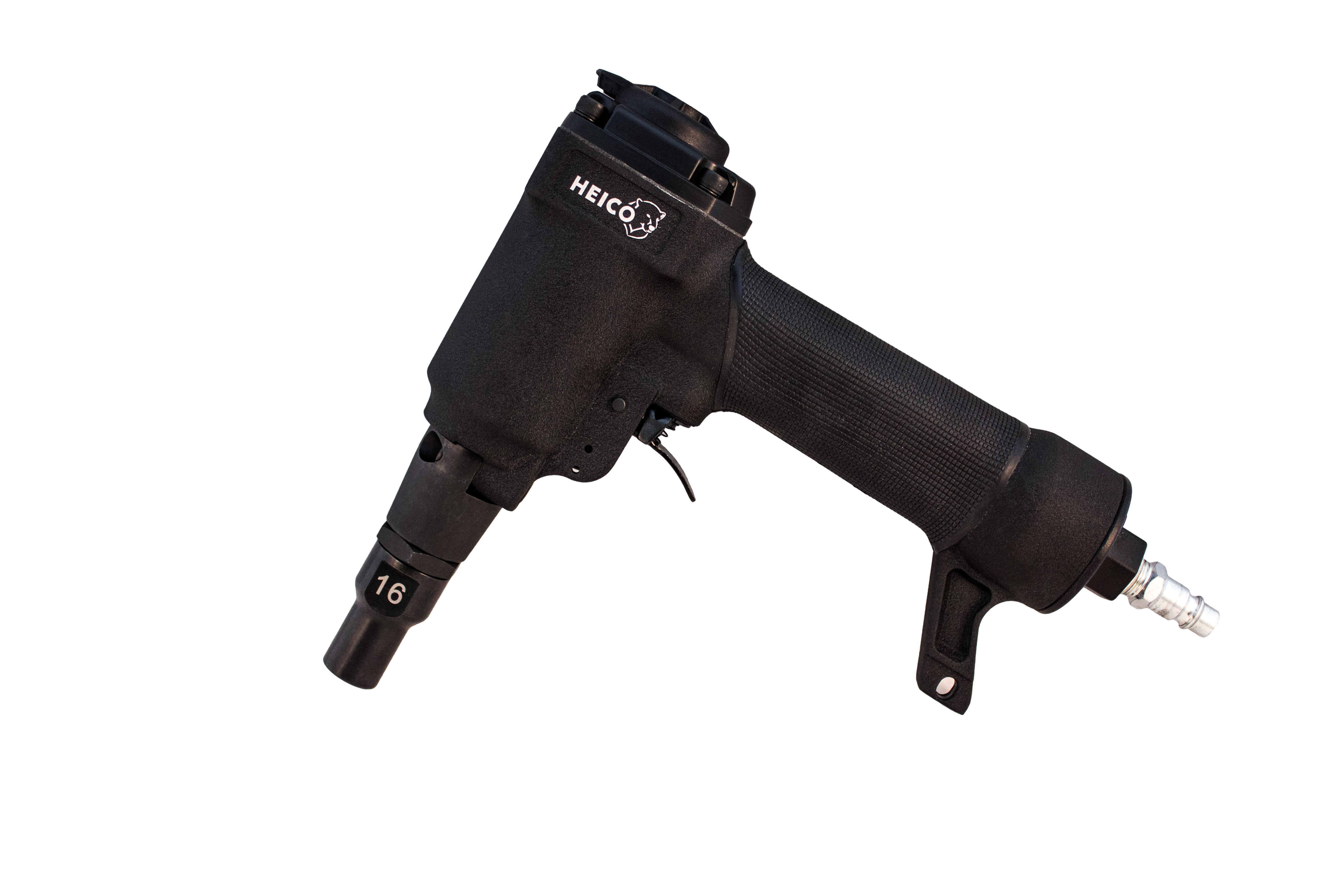

	Pneumatic power nailers Single shot nailer	Model size (L x H x W): 230 x 180 x 70 mm / 9.06“ x 7.09“ x 2.76“ Weight (without fasteners): 0,75 kg / 1.65 lbs Recommended operating pressure range: 4,5 ~ 6 bar / 65 ~ 90 PSIG Air consumption: 0,13 l/min. with 25 nails per minute Noise dB(A): Sound pressure level LpA = 80.52 dB(A) Sound power level LwA = 93,52 dB(A) Nails: Head-Ø 16 mm / 0,63“ 19 mm / 0,75“ 22 mm / 0,87“ 25 mm / 0,98“ More sizes upon request Shank 12 ~ 23 mm / 0,47“ ~ 0,91“ 12 ~ 23 mm / 0,47“ ~ 0,91“ 14 ~ 27 mm / 0,55“ ~ 1,06“ 14 ~ 27 mm / 0,55“ ~ 1,06“ Magazine 1 piece Nail-Seat included More models upon request
	Nailhead strips Available finishes: brass plated nickel plated oldgold-spotted brass relieved polished (bronce renaissance) oldcopper antique pewter	100 1/3 130 1/3 1505 1504 1503	9,5 mm 11,0 mm 16,0 mm 18,0 mm 20,0 mm
	Ply-Grip	Due to the use of tinplated metal the surface of the Ply-Grips is smooth and less prone to corrosion, even after longer storage times. The Ply-Grips are supplied in rolls of 30 meters and are available with 2 or 3 teeth. Features: tin plated 19,05 x 0,31 mm 2 or 3 teeth rolls of 30 m Delivery unit: 10 rolls per carton
